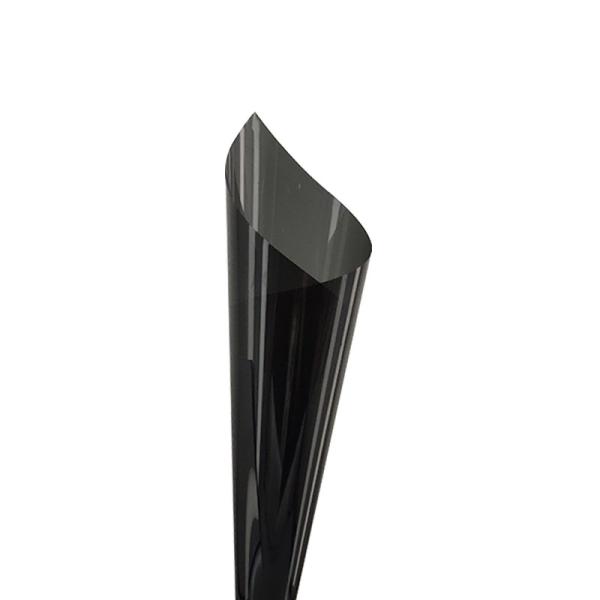

PET Sunblock Window Film / UV Blocking Window Film 10-90% IRR
Sunblock Window Film presentation:
Sunblock Window Film uses nanoscale insulating oxide or nitride ceramic material combined with the optical grade PET substrate, it has a higher blocking ability for blocking infrared and ultraviolet light,and because of its non-metallic feature and feature of reducing both outer and inner reflective of the glass,it can create a comfortable environment. The physical and chemical stability,weather resistance, oxidation resistanca of the new nano-ceramic film material make life of the film longer.
Sunblock Window Film advantages :
Protect your eyes - resist blue shortwave radiation
Anti blue films of Nalinke can filter 350nm-410nm anti-harmful rays of shortwave blue light in high energy region of the visible light, prevent the damage of UV on the eye lens and produce also cataract, blue light causes retina congestion, and lens becomes convex, then produce myopia.
Sunscreen effect: 20 times more than ordinary sunscreen cream
1) Sunscreen Index is more than 400, anti blue films of Nalinke give you complete UV-protection, and allows you to stay away from damage of UV.
2) The index of SPF is higher , the protection is the greater, SPF of ordinary sunscreen is between 4-30.
3.UV blocking of Full-waveband
1) Anti-blue films of Nalinke with "UV400" can block UV of Full-waveband .
2) Reflecting full-waveband and absorbing ultraviolet rays.
Sunblock Window Film Parameters
| Item | Unit | Reference Value | Test Value |
| Tensile Strength | MD | Kg/mm2 | 33 | 27±5 |
| | TD | Kg/mm2 | 27.5 | 26±5 |
| Elongation | MD | % | 126 | 140±40 |
| | TD | % | 110 | 130±40 |
| Heat Shrinkage | MD | % | 1.4 | 1.5±1 |
| | TD | % | 0.3 | 0±1 |
| Friction Shrinkage | US | - | 0.25 | 0.4±0.2 |
| | UK | - | 0.22 | 0.3±0.2 |
| Haze | % | 1.5 | ≤2.0 |
| Definition | % | 99.8 | ≥99 |
| Wetting Tension | Dyne/cm | 52 | ≥50 |
| VLT | % | 88 | 88±2 |
| IRR | % | 11 | 11±2 |
| UVR | % | 99 | 99±1 |
Our company
Innovation& Quality is our eternal belief!
Nanolink has nanometer metallic oxide preparation, grinding scattering, modified function of masterbatch as core technology, and is based on the research and development of functional materials from optical PET film. Products are widely used photoelectricity, construction, automobile and other fields, innovation and quality is our eternal belief!
Combine·Exceed for Nanolink Materials
In order to maintain the worldwide technological competitiveness and open up a new field for film materials, Nanolink integrates the technology of functional masterbatch dispersion, aggregation, BOPET and online surface coating. Combine now·Exceed future...
Inorganic nanoparticles Ceramic Chip Dyed Series
| Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
| IR 7080 | 70% | 80% | 0.5% | 10Years | 48% |
| IR8080 | 80% | 80% | 0.5% | 10Years | 41% |
| IR2080 | 20% | 80% | 0.5% | 10Years | 86% |
| IR7040 | 70% | 40% | 0.5% | 10Years | 99% |
Organic Chip Dyed Series
| Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
| TUV16 | 13% | 40% | 1.5% | 2-3Years | 100% |
| TUV25 | 22% | 40% | 1.5% | 2-3Years | 100% |
| TUV30 | 29% | 40% | 1.5% | 2-3Years | 100% |
| CD15918 | 18% | 13% | 1.5% | 2-3Years | 40% |
